S-Mount Tunable Lens Module Development Kit
Plug & play, easy evaluation of Optotune’s tunable lenses
The Optotune S-mount focus-tunable liquid lens module development kit offers an easy setup to evaluate focus-tunable liquid lenses in imaging systems.
With a board-level camera, S-mount optics, and an integrated controller, the kit provides an easy-to-use platform to evaluate the capability of tunable liquid lenses to fast and accurately focus.The kit has a compact footprint of 58 × 44 × 15 mm.
Designed for embedded vision, robotics, and automation, Optotunes tunable lens modules can be quickly evaluated and prototyped using this kit. Follow this link to discover a line-up of different tunable lens modules using Optotune’s liquid lenses.
Applications:
- Compact industrial vision systems
- Handheld dermatoscopes
- Robotics & automation
- Embedded inspection and sensing
Key points:
- Evaluation kit including a compact board-level camera with S-mount interface
- Plug & play setup via USB 3.0
- Supports multiple ELM lenses (6–25 mm focal length, not included in this kit)
- Focus from 50 mm to infinity within milliseconds

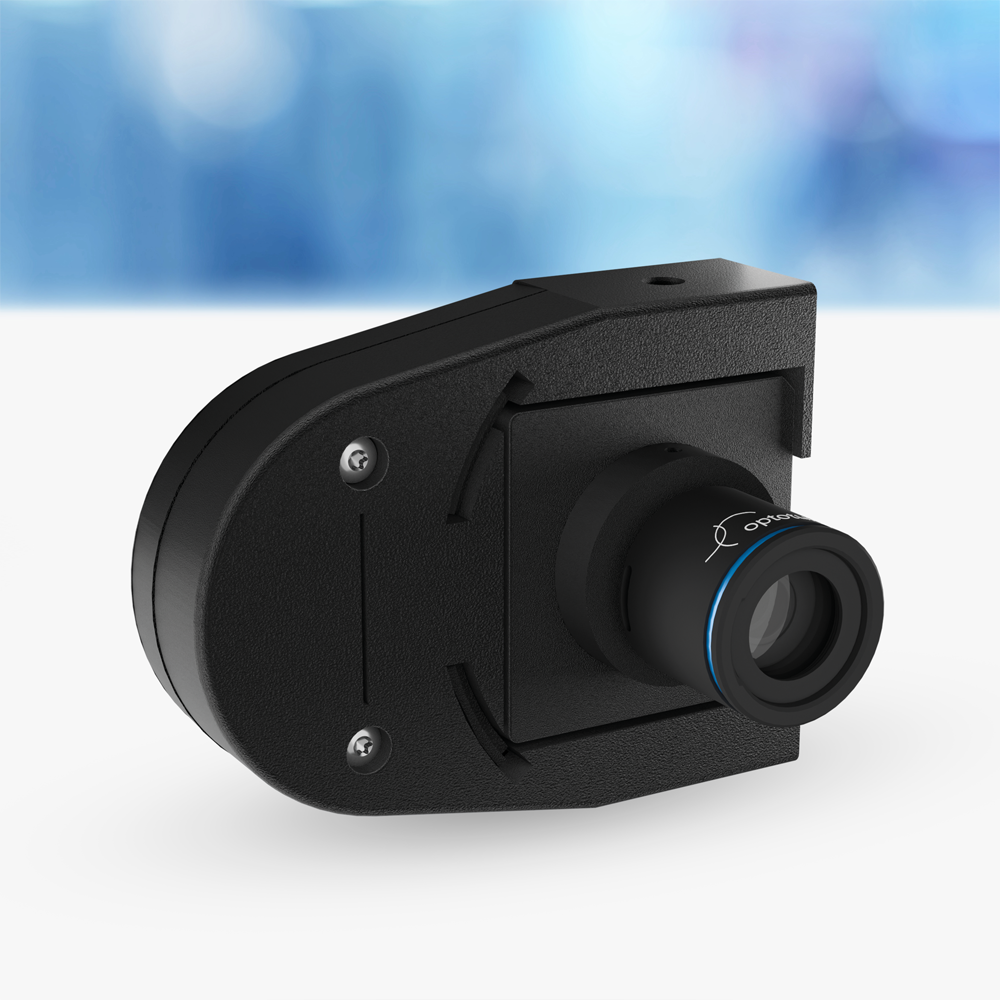

S-Mount Camera development kit

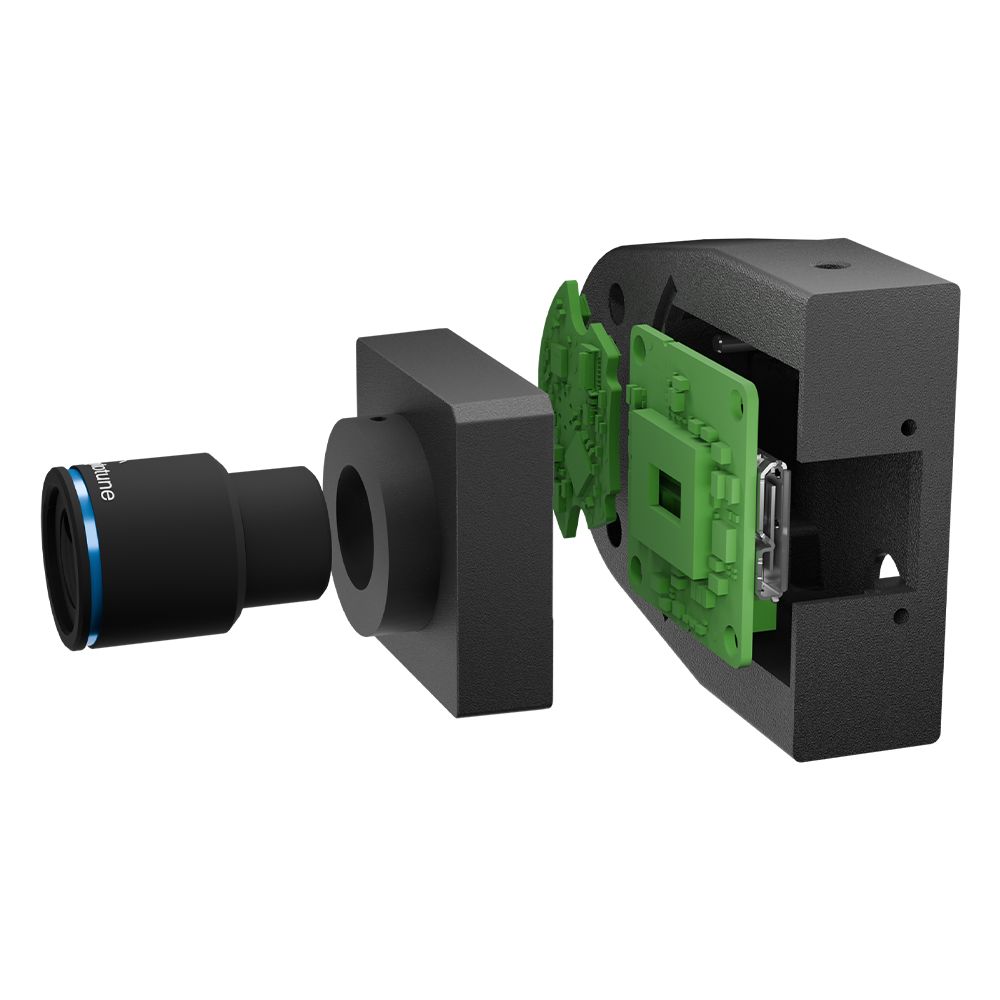

S-Mount Camera development kit composition
| Parameter | Value |
|---|---|
| Dimensions | 58.0 × 44.1 × 15.3 mm | Supported lenses (not included) | ELM S-mount, 6–25 mm focal length. ELM S-mount, 6–25 mm focal length. Click here to select a tuneable lens modules using Optotune’s liquid lenses. | Aperture range | f/3.4 – f/5.6 | Working distance | 50 mm → ∞ | Transmission | 420 – 900 nm (>90%) | Camera options | 2.3 MP global shutter @160 fps · 8.3 MP rolling shutter @45 fps | Controller power | 1.5 W | Lens power | max 0.1 W | Control interface | USB 3.0 |
