EL-3.1-10.8

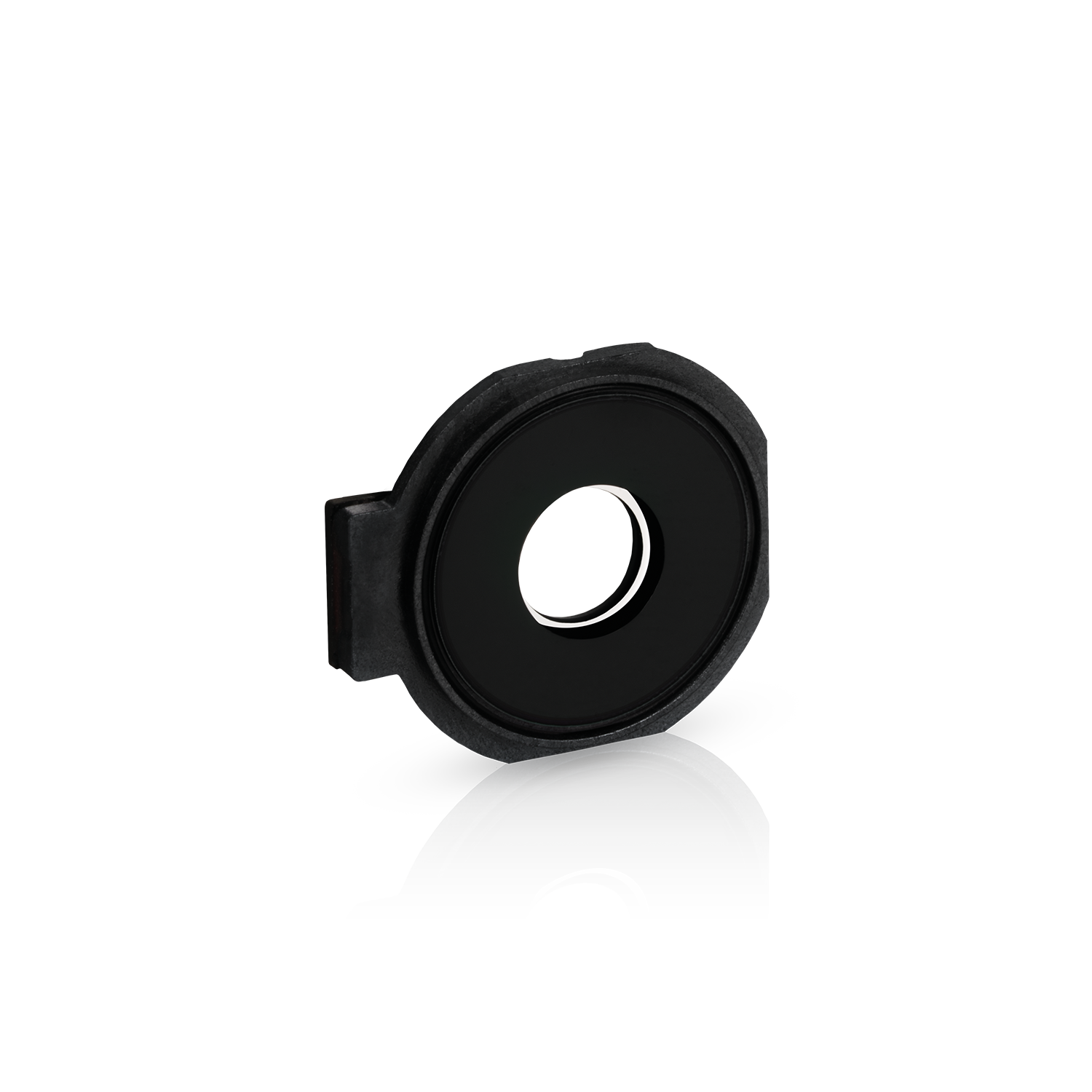

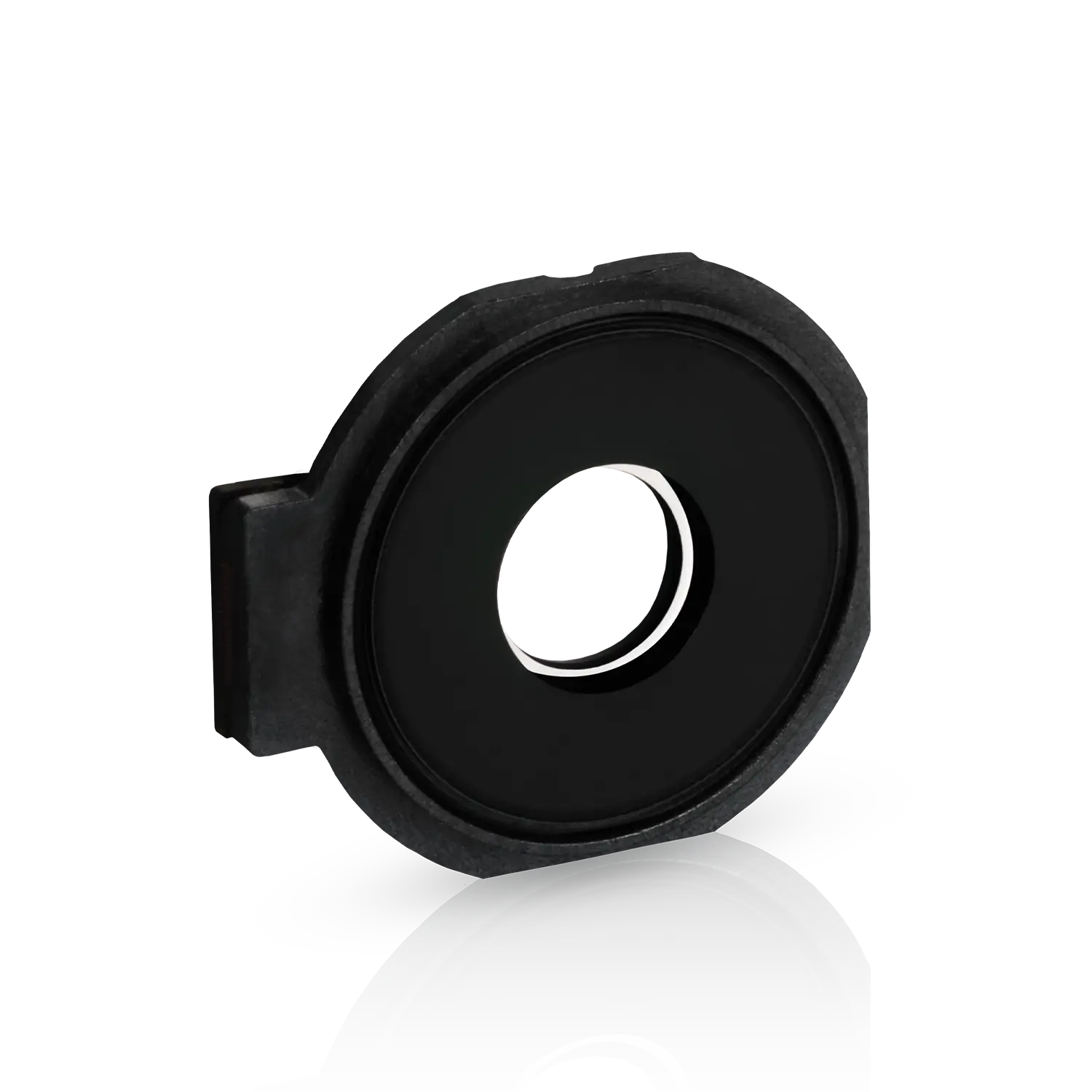

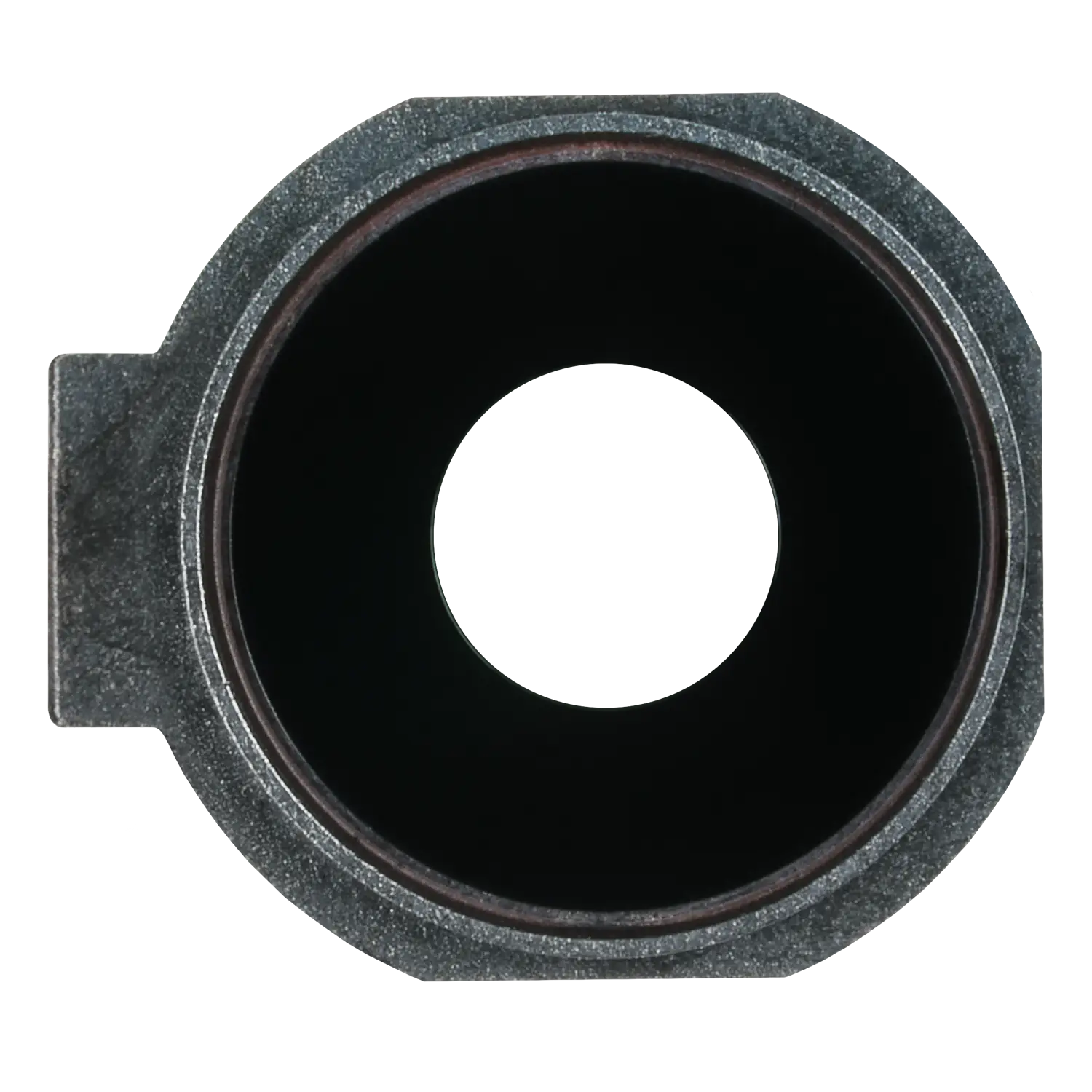

EL-3.1-10.8 is an ultra-compact liquid lens designed for high-volume OEM integration, leveraging Optotune’s proven shape-changing lens technology. By applying electrical current, the lens curvature shifts from concave to convex, enabling fast and precise focal tuning within milliseconds.
Powered by reliable voice-coil actuators, the EL-3.1-10.8 delivers robust autofocus performance across a wide focus range. Its exceptionally thin, lightweight design makes it ideal for integration into lens barrels, AR/VR headsets, and other space-constrained optical systems.
Main specifications:
Clear aperture: 3.1 mm
Thickness / weight: 1.7 mm / 0.3 g
Rise / settling time: 1 / 4 ms
Wide focal power range: up to 18 dpt
Wavefront error, class 1: 0.07 λ RMS
Abbe number: 100
Nominal current range: -125 to 125 mA
This product has multiple versions.
The best quality possible
Configurations
- Wavelength range: visible, NIR coming soon
- Connector type: FPC or no connector (OEM)
Applications
EL-3.1 is ideal for high-volume applications such as barcode scanners, integration into optical stacks (e.g. S-mount lenses), AR/VR headsets, humanoids, web cameras, access control and diagnostic applications.| Product name | Focal power range (dpt) | Wavefront error (λ) | Wavelength range (nm) | Class | Connector type | hf:tax:pa_atr-focal-power-range | hf:tax:pa_atr-wavefront-error | hf:tax:pa_atr-wavelegth-range | hf:tax:pa_atr-class | hf:tax:pa_atr-connector-type |
|---|---|---|---|---|---|---|---|---|---|---|
| EL-3.1-10.8-VIS-16D-1-FPC55 | -8 to 10 | 0.07 | 420 - 950 | 1 | FPC | 8-to-10 | 0-07-2 | 420-950 | 1 | fpc |
| EL-3.1-10.8-VIS-16D-1-OEM | -8 to 10 | 0.07 | 420 - 950 | 1 | Solder pads | 8-to-10 | 0-07-2 | 420-950 | 1 | solder-pads |
| EL-3.1-10.8-VIS-16D-FPC55 | -8 to 8 | 0.2 | 420 - 950 | 2 | FPC | 8-to-8 | 0-2-2 | 420-950 | 2 | fpc |
| EL-3.1-10.8-VIS-16D-OEM | -8 to 8 | 0.2 | 420 - 950 | 2 | Solder pads | 8-to-8 | 0-2-2 | 420-950 | 2 | solder-pads |
