- Focus tunable lenses

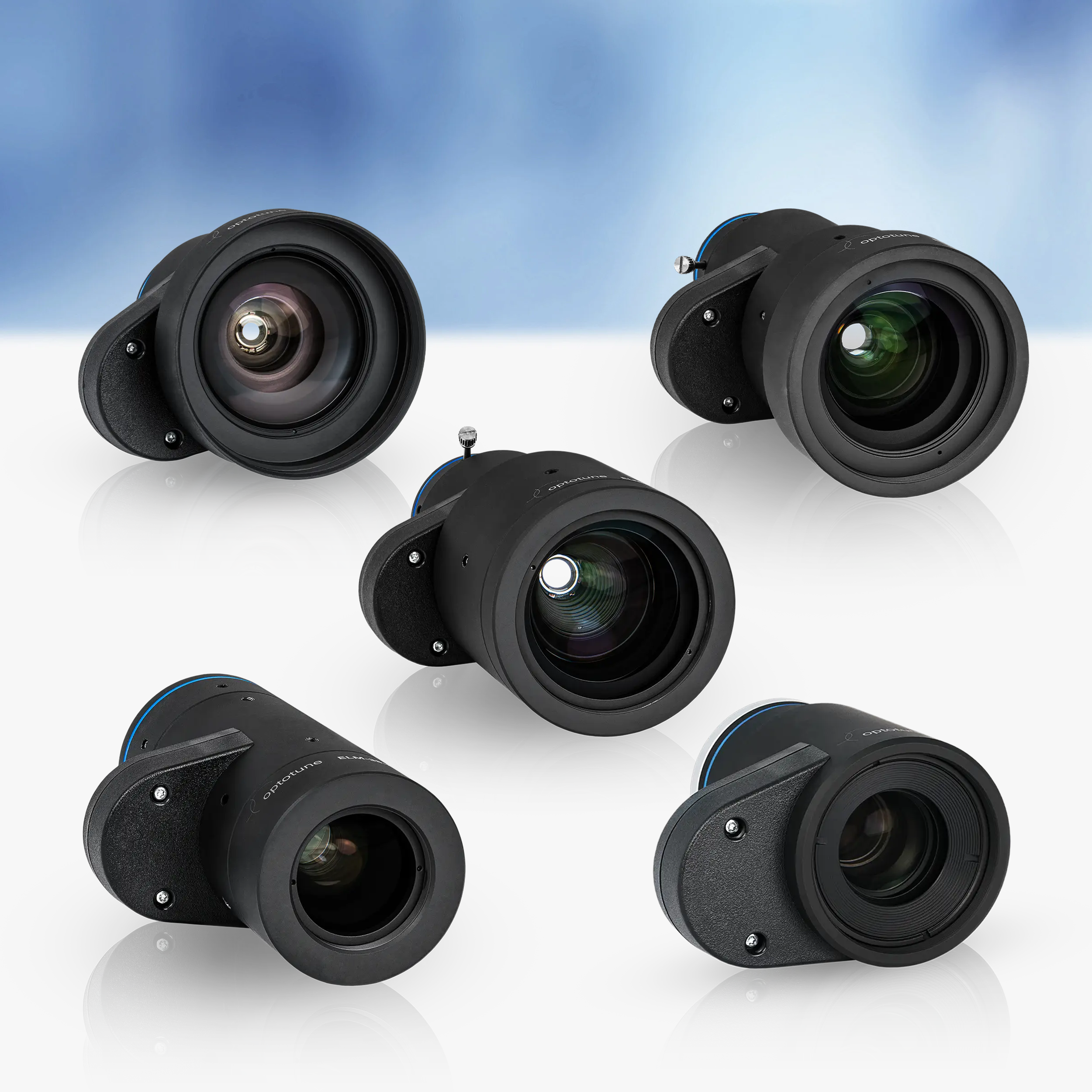

C-mount ELM-F series
C-mount modules for sensors up to 4/3″ are essential when applications require higher resolution, larger fields of view, and more light throughput.
Integrating liquid lenses enables fast, precise focus without mechanical movement, enhancing reliability and reducing maintenance. This combination delivers sharp imaging, flexibility, and speed for industrial and automation systems.
Product variants
Optotune’s C-mount ELM-F modules feature an optimized optical design for high imaging performance and reduced development time. They support up to 1.1” sensors with pixel sizes down to 2.7 μm. When paired with Optotune’s optional embedded lens controller, precise and fast focal power adjustment becomes easy—even in environments with fluctuating temperatures.
Optotune works with a broad network of partners who integrate liquid lenses into their focus-tunable optical systems. This enables a wide range of lens solutions with focal lengths up to 300 mm and compatibility with sensors up to 4/3”. When combined with Optotune’s optional embedded lens controller, fast and precise focal power adjustment becomes effortless—even in varying temperature environments.
C-mount ELM for 1.1” series
| Product name | Focal length (mm) | F# | Recommended pixel size (μm) | Camera sensor format | Connector type | Lens control | Datasheet | hf:tax:tax-focal-length-mm | hf:tax:pa_atr-f | hf:tax:pa_atr-connector-type | hf:tax:pa_atr-lens-control | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ELM-12-4.0-18-C | 12 | 4.0 | 2.7 | 1.1" | Hirose male | • |  | Details | 12 | 4-0 | hirose-male | 214 |
| ELM-12-4.0-18-C-E | 12 | 4.0 | 2.7 | 1.1" | Hirose female | ✓ | | Details | 12 | 4-0 | hirose-female | %e2%9c%93 |
| ELM-16-3.1-18-C | 16 | 3.1 | 2.7 | 1.1" | Hirose male | • |  | Details | 16 | 3-1 | hirose-male | 214 |
| ELM-16-3.1-18-C-E | 16 | 3.1 | 2.7 | 1.1" | Hirose female | ✓ | | Details | 16 | 3-1 | hirose-female | %e2%9c%93 |
| ELM-16-4.0-18-C | 16 | 4.0 | 2.7 | 1.1" | Hirose male | • | | Details | 16 | 4-0 | hirose-male | 214 |
| ELM-16-4.0-18-C-E | 16 | 4.0 | 2.7 | 1.1" | Hirose female | ✓ | | Details | 16 | 4-0 | hirose-female | %e2%9c%93 |
| ELM-25-3.2-18-C | 25 | 3.2 | 2.7 | 1.1" | Hirose male | • |  | Details | 25 | 3-2 | hirose-male | 214 |
| ELM-25-3.2-18-C-E | 25 | 3.2 | 2.7 | 1.1" | Hirose female | ✓ | | Details | 25 | 3-2 | hirose-female | %e2%9c%93 |
| ELM-25-3.7-18-C | 25 | 3.7 | 2.7 | 1.1" | Hirose male | • | | Details | 25 | 3-7 | hirose-male | 214 |
| ELM-25-3.7-18-C-E | 25 | 3.7 | 2.7 | 1.1" | Hirose female | ✓ | | Details | 25 | 3-7 | hirose-female | %e2%9c%93 |
| ELM-35-3.2-18-C | 35 | 3.2 | 2.7 | 1.1" | Hirose male | • |  | Details | 35 | 3-2 | hirose-male | 214 |
| ELM-35-3.2-18-C-E | 35 | 3.2 | 2.7 | 1.1" | Hirose female | ✓ | | Details | 35 | 3-2 | hirose-female | %e2%9c%93 |
| ELM-35-5.4-18-C | 35 | 5.4 | 2.7 | 1.1" | Hirose male | • | | Details | 35 | 5-4 | hirose-male | 214 |
| ELM-35-5.4-18-C-E | 35 | 5.4 | 2.7 | 1.1" | Hirose female | ✓ | | Details | 35 | 5-4 | hirose-female | %e2%9c%93 |
| ELM-50-3.5-18-C | 50 | 3.5 | 2.7 | 1.1" | Hirose male | • |  | Details | 50 | 3-5 | hirose-male | 214 |
| ELM-50-3.5-18-C-E | 50 | 3.5 | 2.7 | 1.1" | Hirose female | ✓ | | Details | 50 | 3-5 | hirose-female | %e2%9c%93 |
| ELM-50-5.6-18-C | 50 | 5.6 | 2.7 | 1.1" | Hirose male | • | | Details | 50 | 5-6 | hirose-male | 214 |
| ELM-50-5.6-18-C-E | 50 | 5.6 | 2.7 | 1.1" | Hirose female | ✓ | | Details | 50 | 5-6 | hirose-female | %e2%9c%93 |
The legend showing driver compatibility:
• Compatible with ICC-1C or ICC-4C-500 (not included)
✓ Embedded ECC-1C
Third party C-mount ELM-F
The following table summarizes the main specifications of the third-party ELM-F series for C-mount cameras supplied by our lens partners
| Product name | Focal length (mm) | F# | Recommended pixel size (μm) | Camera sensor format | Connector type | Lens control | Manufacturer | Datasheet | Test report | hf:tax:tax-focal-length-mm | hf:tax:pa_atr-f | hf:tax:tax-recommended-pixel-size-m | hf:tax:tax-camera-sensor-format | hf:tax:tax-connector-type | hf:tax:pa_atr-lens-control | hf:tax:tax-manufacturer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ELM-6-5.6-9-C | 6 | 5.6 | 3.5 | 1/1.8" | Hirose | • | Opto Engineering |  | 6 | 5-6 | 3-5 | 1-1-8 | hirose | 214 | opto-engineering | |
| ELM-8-4.0-9-C | 8 | 4.0 | 3.45 | 1/1.8" | Hirose | • | OPT Machine Vision |  | 8 | 4-0 | 3-45 | 1-1-8 | hirose | 214 | opt-machine-vision | |
| ELM-8-5.6-11-C | 8 | 5.6 | 3.5 | 2/3" | Hirose | • | Opto Engineering |  | 8 | 5-6 | 3-5 | 2-3 | hirose | 214 | opto-engineering | |
| ELM-12-2.8-18-C | 12 | 2.8 | 2.4 | 1.1" | Hirose | • | VST |  |  | 12 | 2-8 | 2-4 | 1-1 | hirose | 214 | vst |
| ELM-12-2.8-18-C-E | 12 | 2.8 | 2.4 | 1.1" | Hirose | ✓ | VST | | | 12 | 2-8 | 2-4 | 1-1 | hirose | %e2%9c%93 | vst |
| ELM-12-4.0-9-C | 12 | 4.0 | 3.45 | 1/1.8" | Hirose | • | OPT Machine Vision |  | 12 | 4-0 | 3-45 | 1-1-8 | hirose | 214 | opt-machine-vision | |
| ELM-12-5.6-11-C | 12 | 5.6 | 3.5 | 2/3" | Hirose | • | Opto Engineering |  | 12 | 5-6 | 3-5 | 2-3 | hirose | 214 | opto-engineering | |
| ELM-16-4.8-18-C | 16 | 4.8 | 3.45 | 1.1" | Hirose | • | Linkhou |  | 16 | 4-8 | 214 | |||||
| ELM-16-4.8-18-C-E | 16 | 4.8 | 3.45 | 1.1" | Hirose | ✓ | Linkhou | | 16 | 4-8 | %e2%9c%93 | |||||
| ELM-16-5.6-11-C | 16 | 5.6 | 1.5 | 2/3" | Hirose | • | OPT Machine Vision |  | 16 | 5-6 | 3-5 | 2-3 | hirose | 214 | opt-machine-vision | |
| ELM-25-2.8-18-C | 25 | 2.8 | 1.4 | 1.1" | Hirose | • | Evetar |  |  | 25 | 2-8 | 2-4 | 1-1 | hirose | 214 | evetar |
| ELM-25-2.8-18-C-E | 25 | 2.8 | 1.4 | 1.1" | Hirose | ✓ | Evetar | | | 25 | 2-8 | 2-4 | 1-1 | hirose | %e2%9c%93 | evetar |
| ELM-25-4.2-18-C | 25 | 4.2 | 1.45 | 1.1" | Hirose | • | Linkhou |  | 25 | 4-2 | 3-45 | 1-1 | hirose | 214 | linkhou | |
| ELM-25-4.2-18-C-E | 25 | 4.2 | 1.45 | 1.1" | Hirose | ✓ | Linkhou | | 25 | 4-2 | 3-45 | 1-1 | hirose | %e2%9c%93 | linkhou | |
| ELM-25-5.6-11-C | 25 | 5.6 | 3.5 | 2/3" | Hirose | • | OPT Machine Vision |  | 25 | 5-6 | 3-5 | 2-3 | hirose | 214 | opt-machine-vision | |
| ELM-35-4.2-18-C | 35 | 4.2 | 3.45 | 1.1" | Hirose | • | Linkhou |  | 35 | 4-2 | 3-45 | 1-1 | hirose | 214 | linkhou | |
| ELM-35-4.2-18-C-E | 35 | 4.2 | 3.45 | 1.1" | Hirose | ✓ | Linkhou | | 35 | 4-2 | 3-45 | 1-1 | hirose | %e2%9c%93 | linkhou | |
| ELM-35-5.6-14-C | 35 | 5.6 | 3.0 | 2/3" | Hirose | • | Kowa |  |  | 35 | 5-6 | 3-0 | 2-3 | hirose | 214 | kowa |
| ELM-35-5.6-14-C-E | 35 | 5.6 | 3.0 | 2/3" | Hirose | ✓ | Kowa | | | 35 | 5-6 | 3-0 | 2-3 | hirose | %e2%9c%93 | kowa |
| ELM-35-5.6-16-C | 35 | 5.6 | 1 | 1" | Hirose | • | Kowa |  | 35 | 5-6 | 3-0 | 1 | hirose | 214 | kowa | |
| ELM-35-5.6-16-C-E | 35 | 5.6 | 1 | 1" | Hirose | ✓ | Kowa | | 35 | 5-6 | 3-0 | 1 | hirose | %e2%9c%93 | kowa | |
| ELM-35-6.4-11-C | 35 | 6.4 | 3.45 | 2/3" | Hirose | • | OPT Machine Vision |  | 35 | 6-4 | 3-45 | 2-3 | hirose | 214 | opt-machine-vision | |
| ELM-50-8.0-11-C | 50 | 8.0 | 3.45 | 2/3" | Hirose | • | OPT Machine Vision |  | 50 | 8 | 3-45 | 2-3 | hirose | 214 | opt-machine-vision | |
| ELM-60-4.0-24-C | 60 | 4.0 | 3.5 | 4/3" | Hirose | • | Schneider Kreuznach |  |  | 60 | 4-0 | 3-5 | 4-3 | hirose | 214 | schneider-kreuznach |
| ELM-60-4.0-24-C-E | 60 | 4.0 | 3.5 | 4/3" | Hirose | ✓ | Schneider Kreuznach | | | 60 | 4-0 | 3-5 | 4-3 | hirose | %e2%9c%93 | schneider-kreuznach |
| ELM-75-4.0-16-C | 75 | 4.0 | 3.45 | 1" | Hirose | • | Evetar |  | | 75 | 4-0 | 3-45 | 1 | hirose | 214 | evetar |
| ELM-75-4.0-16-C-E | 75 | 4.0 | 3.45 | 1" | Hirose | ✓ | Evetar | | | 75 | 4-0 | 3-45 | 1 | hirose | %e2%9c%93 | evetar |
| ELM-75-4.0-8-C-NIR | 75 | 4.0 | 3.45 | 1/2" | FPC | • | Evetar |  | 75 | 4-0 | 3-45 | 1-2 | fpc | 214 | evetar | |
| ELM-80-4.0-24-C | 80 | 4.0 | 5.0 | 4/3" | Hirose | • | Schneider Kreuznach |  |  | 80 | 4-0 | 5-0 | 4-3 | hirose | 214 | schneider-kreuznach |
| ELM-80-4.0-24-C-E | 80 | 4.0 | 5.0 | 4/3" | Hirose | ✓ | Schneider Kreuznach | | | 80 | 4-0 | 5-0 | 4-3 | hirose | %e2%9c%93 | schneider-kreuznach |
| ELM-150-7.5-11-C | 150 | 7.5 | 5.0 | 2/3" | Hirose | • | Sill Optics | 150 | 7-5 | 5-0 | 2-3 | hirose | 214 | sill-optics | ||
| ELM-150-7.5-11-C-E | 150 | 7.5 | 5.0 | 2/3" | Hirose | ✓ | Sill Optics | 150 | 7-5 | 5-0 | 2-3 | hirose | %e2%9c%93 | sill-optics | ||
| ELM-300-10.0-11-C | 300 | 10 | 8.0 | 2/3" | Hirose | • | Sill Optics |  | 300 | 10 | 8-0 | 2-3 | hirose | 214 | sill-optics | |
| ELM-300-10.0-11-C-E | 300 | 10 | 8.0 | 2/3" | Hirose | ✓ | Sill Optics | | 300 | 10 | 8-0 | 2-3 | hirose | %e2%9c%93 | sill-optics |
The legend showing driver compatibility:
• Compatible with ICC-1C or ICC-4C-500 (not included)
✓ Embedded ECC-1C
For more information regarding the third party models
